74ACT16657DL

74ACT16657DL Overview

Product belongs to the 74ACT series. This product is categorized as Parity Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.024508 oz SMD/SMT Mounting-Style SSOP-56 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver with Parity Checker. Number of channels: 16 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 56-SSOP 2 is 8. 2 element Transceiver, Non-Inverting logic type 8 bits per element Power-off control: 1.4 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 8 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 10.7 ns is 23 microseconds. CMOS is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

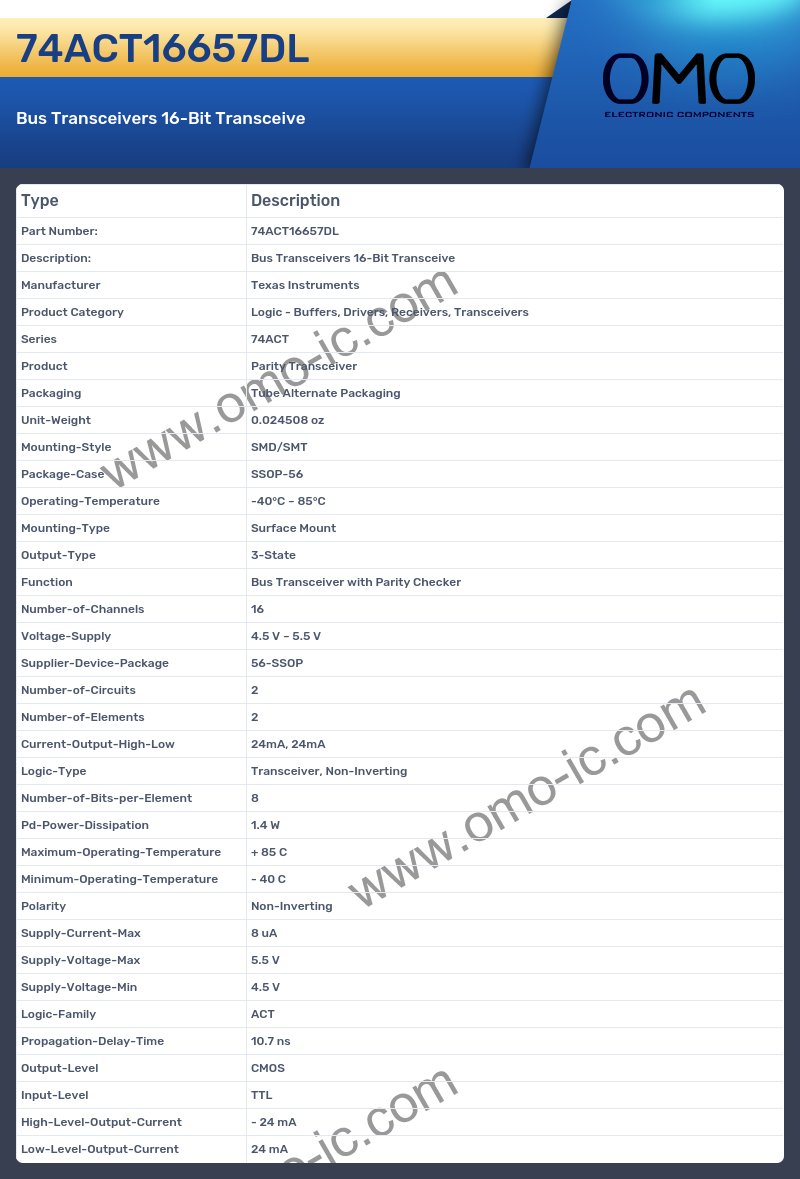

74ACT16657DL Image

74ACT16657DL Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Product Parity Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.024508 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-56
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Bus Transceiver with Parity Checker
• Number-of-Channels 16
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 56-SSOP
• Number-of-Circuits 2
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Pd-Power-Dissipation 1.4 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 8 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 10.7 ns
• Output-Level CMOS
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
