74ACT16623DLR

74ACT16623DLR Overview

Product belongs to the 74ACT series. This product is categorized as Standard Transceiver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.021175 oz SMD/SMT Mounting-Style SSOP-48 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is 16-Bit 3-State Bus Transceiver. Number of channels: 16 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 48-SSOP 2 is 8. 2 element Transceiver, Non-Inverting logic type 8 bits per element Power-off control: 1.2 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 8 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 10.4 ns is 23 microseconds. CMOS is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

74ACT16623DLR Image

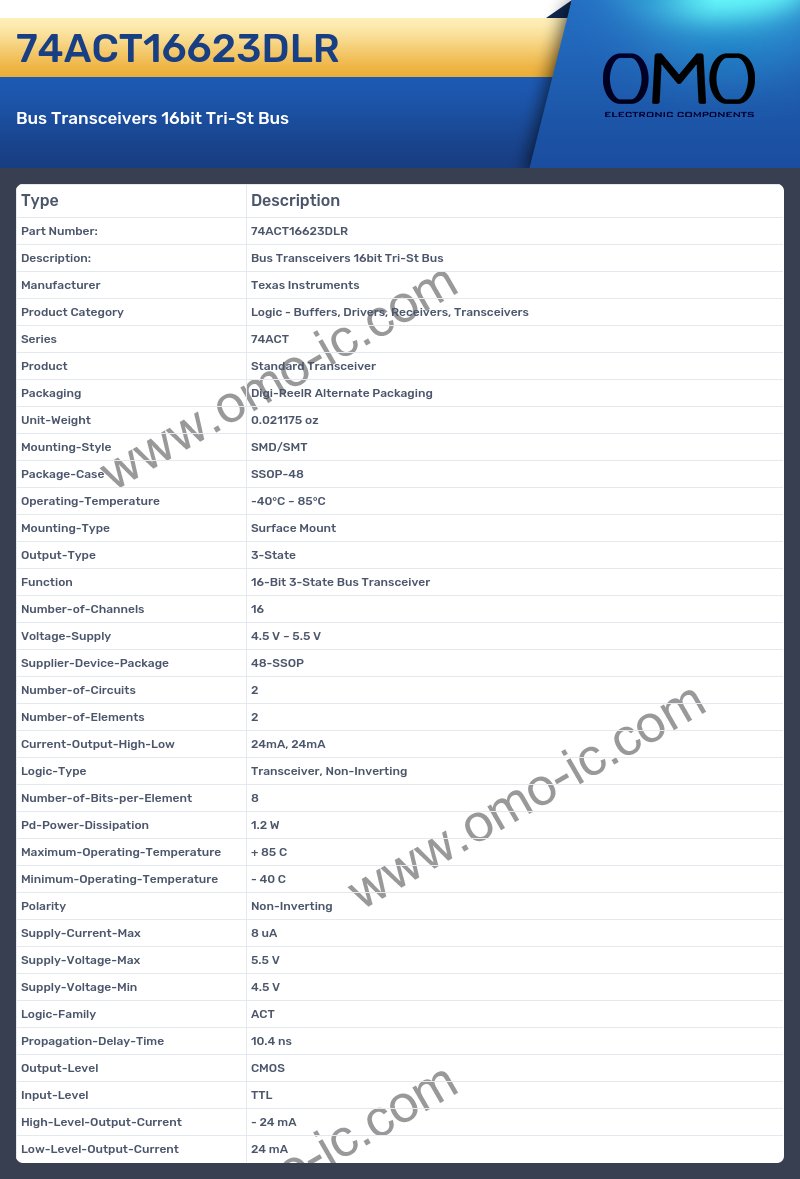

74ACT16623DLR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Product Standard Transceiver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.021175 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-48
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function 16-Bit 3-State Bus Transceiver
• Number-of-Channels 16
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 48-SSOP
• Number-of-Circuits 2
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 8 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 10.4 ns
• Output-Level CMOS
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
