74AC11004DW

74AC11004DW Overview

Product belongs to the 74AC series. Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-20 Wide The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 20-SOIC 6 is 8. 4μA maximum quiescent current. Inverter logic type 0.9 V ~ 1.65 V is a Logic-Level-Low; 2.1 V ~ 3.85 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V AC logic type 7.1 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current

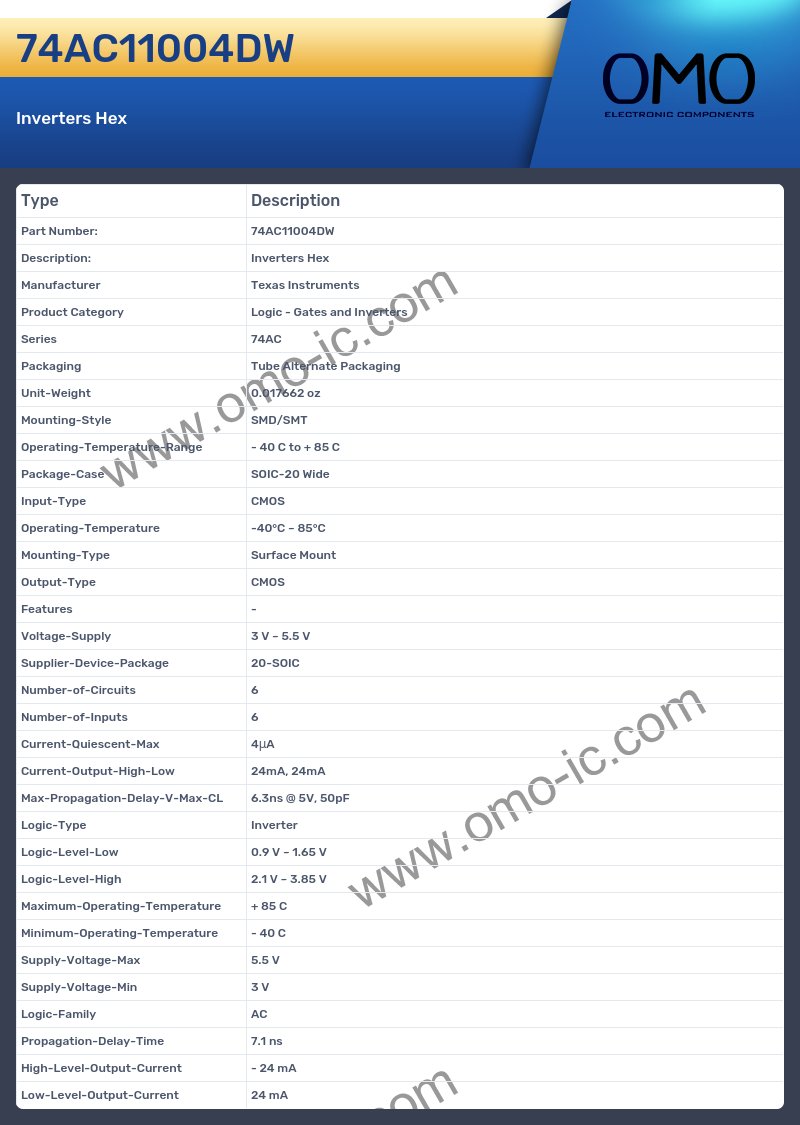

74AC11004DW Image

74AC11004DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-20 Wide
• Input-Type CMOS
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS
• Features -
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 4μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 6.3ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.9 V ~ 1.65 V
• Logic-Level-High 2.1 V ~ 3.85 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Logic-Family AC
• Propagation-Delay-Time 7.1 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
