74VCXH16244TTR Overview

This product is manufactured by STMicroelectronics. Polarity type: Non-Inverting Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-48 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 0.9 mm. 12.6 mm (Max) long The output type is 3-State. STMicroelectronics is a trusted brand for quality electronics The product uses the VCX logic family. CMOS. This product is equipped with 16 for efficient performance. Maximum supply current: 20 uA This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA Yes regarding Moisture Sensitivity 2.3 V to 3.6 V operating supply voltage range 400 mW Buffers & Line Drivers product type The propagation delay time is 3.6 ns at 2.3 V to 2.7 V, 3.1 ns at 3 V to 3.6 V. 2000 of 100 Logic ICs as subcategory 1. 0.014850 oz of Unit Weight

74VCXH16244TTR Image

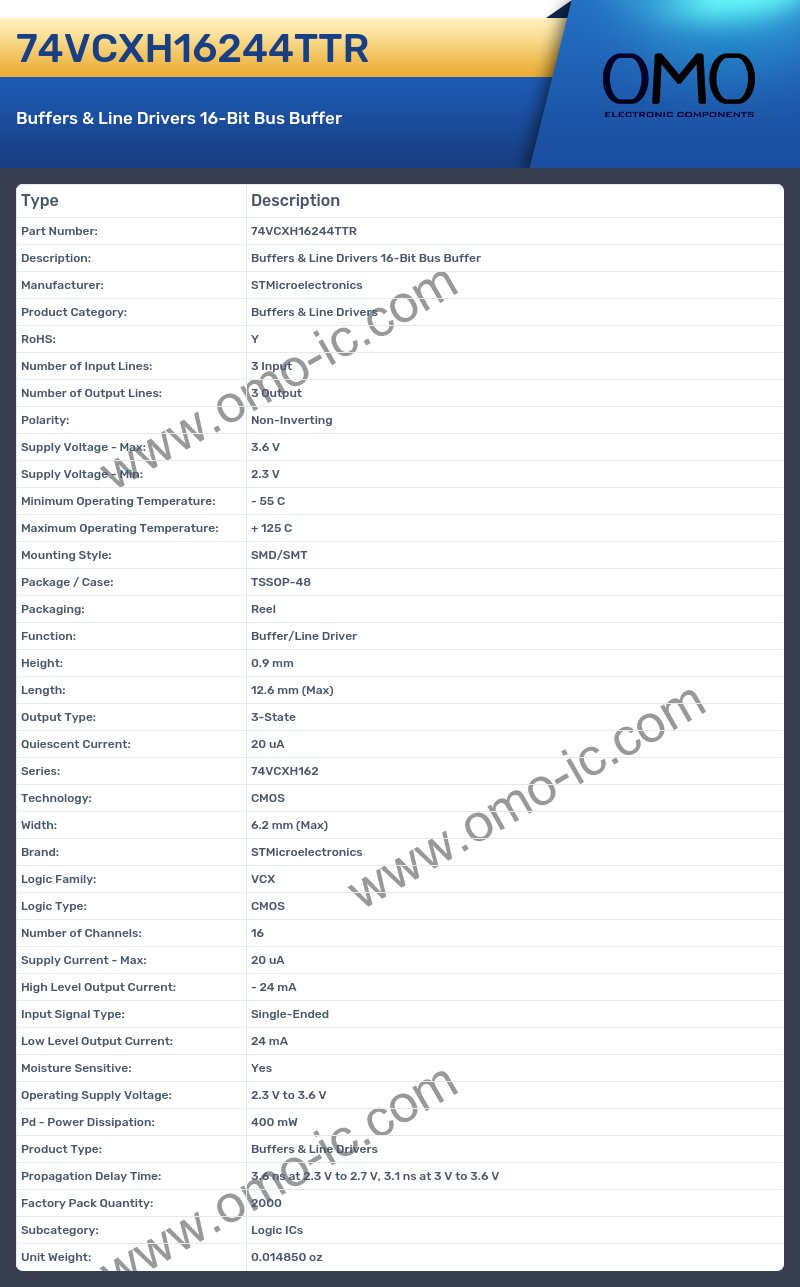

74VCXH16244TTR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 3 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 2.3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-48
• Packaging: Reel
• Function: Buffer/Line Driver
• Height: 0.9 mm
• Length: 12.6 mm (Max)
• Output Type: 3-State
• Quiescent Current: 20 uA
• Series: 74VCXH162
• Technology: CMOS
• Width: 6.2 mm (Max)
• Brand: STMicroelectronics
• Logic Family: VCX
• Logic Type: CMOS
• Number of Channels: 16
• Supply Current - Max: 20 uA
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Moisture Sensitive: Yes
• Operating Supply Voltage: 2.3 V to 3.6 V
• Pd - Power Dissipation: 400 mW
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 3.6 ns at 2.3 V to 2.7 V, 3.1 ns at 3 V to 3.6 V
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.014850 oz
