74HC244D Overview

This product is manufactured by NXP. Polarity type: Non-Inverting Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SO-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 2.45 mm (Max). 13 mm (Max) long The output type is 3-State. NXP Semiconductors is a trusted brand for quality electronics The product uses the HC logic family. CMOS. This product is equipped with 8 for efficient performance. This product has a - 7.8 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 7.8 mA 2 V to 6 V operating supply voltage range 500 mW (1/2 W) Buffers & Line Drivers product type The propagation delay time is 22 ns. 38 of 100 Logic ICs as subcategory This product is also known by the 74HC244D,652 number of 934069005115.

74HC244D Image

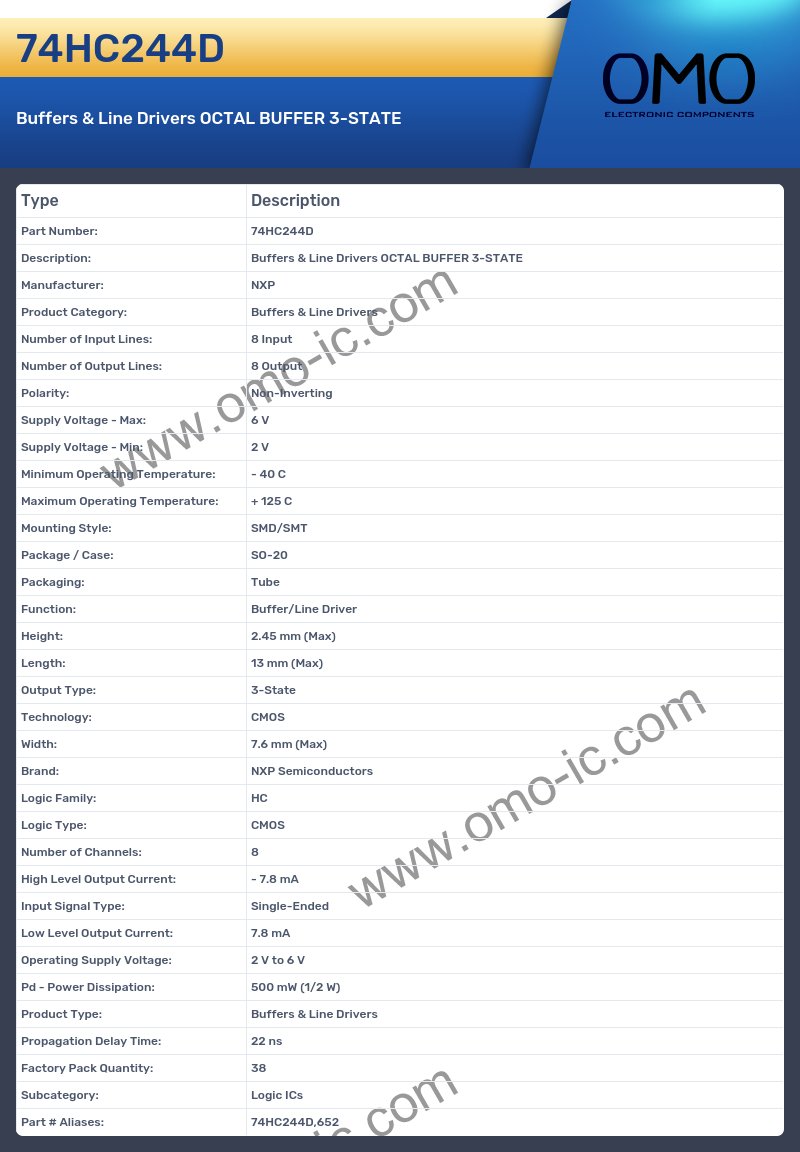

74HC244D Specifications

• Manufacturer: NXP
• Product Category: Buffers & Line Drivers
• Number of Input Lines: 8 Input
• Number of Output Lines: 8 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SO-20
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 2.45 mm (Max)
• Length: 13 mm (Max)
• Output Type: 3-State
• Technology: CMOS
• Width: 7.6 mm (Max)
• Brand: NXP Semiconductors
• Logic Family: HC
• Logic Type: CMOS
• Number of Channels: 8
• High Level Output Current: - 7.8 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 7.8 mA
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 22 ns
• Factory Pack Quantity: 38
• Subcategory: Logic ICs
• Part # Aliases: 74HC244D,652
