| Mfr. #: | 2STR1160 |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | Bipolar Transistors - BJT Low-Volt Fast Switch NPN Pwr Tran |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | 2STR1160 Деректер тізімі |
Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007090 oz SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Surface Mount mounting type Supplier device package: SOT-23-3 Configuration Single Transistor type: NPN Maximum current collector Ic is 1A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 180 @ 500mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 430mV @ 100mA, 1A Power-off control: 500 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. The 60 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1 A Minimum hfe for DC collector-base gain is 180 at 0.5 A at 2 V 85 at 1 A at 2 V. 180 at 0.5 A at 2 V of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

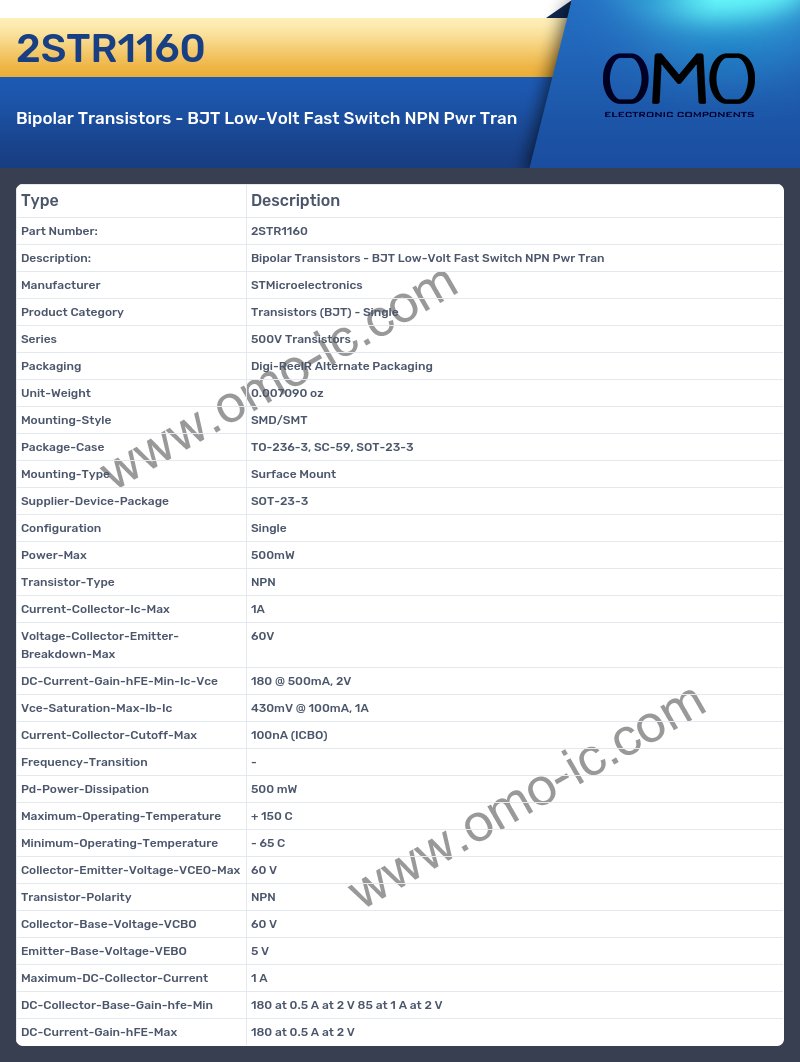

2STR1160 Specifications
A: What is the Series of the product?
Q: The Series of the product is 500V Transistors.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.007090 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-236-3, SC-59, SOT-23-3.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOT-23-3.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed NPN
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 1A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 60V.
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 180 @ 500mA, 2V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 430mV @ 100mA, 1A.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 500 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 60 V
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 60 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 5 V
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 1 A.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 180 at 0.5 A at 2 V 85 at 1 A at 2 V
A: Is the cutoff frequency of the product DC-Current-Gain-hFE-Max?
Q: Yes, the product's DC-Current-Gain-hFE-Max is indeed 180 at 0.5 A at 2 V
